Name	HKS EVC Easy Writer
Category	Forced Induction » Electronic Boost Controllers
Weight	8
Is Oversized?	False

Images

Description

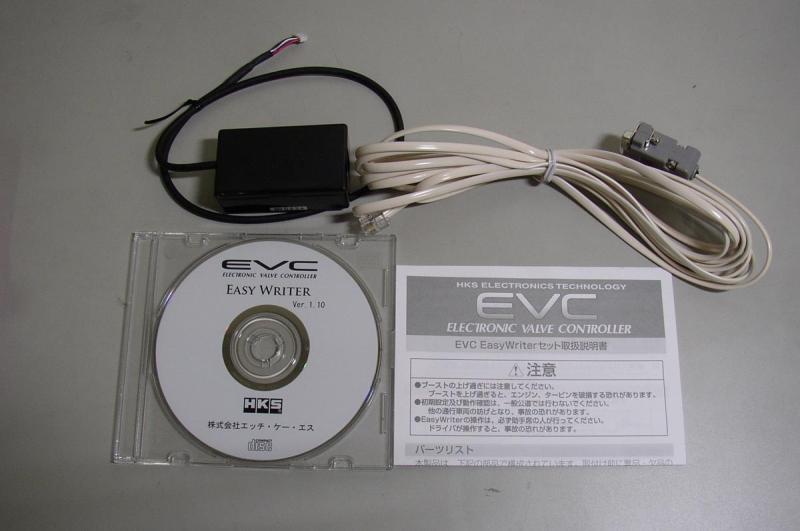

The latest HKS EVC Boost Controller (45003-AK005) has new advanced features such as boost pressure correction mapping so boost levels can be fine tuned for various engine and vehicle dynamics. The EVC Easy Writer software allows tuners the ability to setup and monitor these new advance features of the EVC via a laptop computer.

Main Easy Writer Controllable Settings

• Boost Pressure Correction Mapping: Viewed in 3-Dimensional Graphs and 5×5 Maps, boost pressure can be fine tuned for: RPM, Vehicle Speed, Throttle Position, RPM Throttle Position, or Speed Throttle Position.
• Map Function ON/OFF (whether to use a boost pressure correction map), choice of which correction map to use.
• Target Boost Setting
• Scramble boost level and duration
• Bar Graph display settings: A-Mode and B-Mode boost level, Vehicle Speed, RPM and Throttle PositionBar Graph Peak Function ON/OFF and Peak Level
• Boost correction level
• Offset value
• Offset map setting value input
• Measure of Unit (kPA or PSI)
• After-Image Function ON/OFF (If a change from positive atmospheric pressure to negative atmospheric pressure occurs, the peak positive boost value will be displayed)
• Sampling time setting (boost monitoring in a period)
• Boost warning function ON/OFF and warning level
• Drop boost function ON/OFF and drop level (when boost reaches the warning value, boost pressure will drop a user preset level)
• Display backlight brightness setting

Data Logger
Easy Writer software coverts laptop PC into data logger for engine/vehicle signals being monitored by the EVC boost controller (Boost Pressure, RPM or Vehicle Speed, and Throttle Position).

Save Settings
Settings can be saved to user’s laptop computer. If changes are made thereafter, the saved settings can be recalled and restored.

Items

Image	Part Number	M.S.R.P.	Jobber	M.A.P.	Weight	Notes
	45999-AK017	$139.00	Only Available for RPMWare Clients Signup Today	Only Available for RPMWare Clients Signup Today		EVC Easy Writer EVC Boost Controller NOT INCLUDED
