| Name | HKS Racing Bypass Valve |
| Category | Forced Induction » Blow Off Valves (BOV) |
| Weight | 10 |
| Is Oversized? | False |
 |

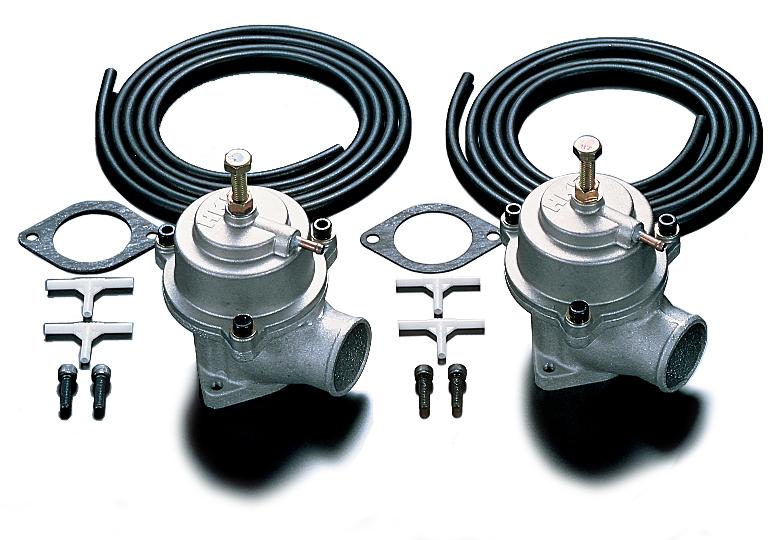

HKS Standard and Racing Bypass valves are push type valves that utilize calibrated spring pressure and vacuum line pressure to remain closed against the pressurized air in the charge pipe. As the throttle is closed, creating vacuum in the line, combined with the force of the pressurized air in the charge pipe, the bypass valve pushes opens and allows the pressurized air to escape. The HKS Standard Bypass Valves are adequate for the airflow associated with engines producing upwards of 300hp. HKS Racing Bypass Valves function similar to the Standard Bypass Valves, but incorporate an additional pressurized port to aid under severe boost conditions. The Racing Bypass Valve can also be used as a safety “pop-off” valve if the second port is connected to a pressure source that does not see vacuum. For added flexibility and function, HKS Racing Bypass Valves are offered in various adjustable boost pressure ranges that are determine by a specific spring pressure.
HKS Racing Bypass Valves function similar to Standard Bypass Valves but incorporate an additional pressurized port to aid under severe boost conditions. They can also be used as safety “pop-off” valves if the second port is connected to a pressure source.
| Image | Part Number | M.S.R.P. | Jobber | M.A.P. | Weight | Notes |
|---|---|---|---|---|---|---|
 |
17670-006100 | $270.00 | Only Available for RPMWare Clients Signup Today |
Only Available for RPMWare Clients Signup Today |
Universal Racing Bypass Valve Include Red Spring (12~18psi) |
|
 |
17670-024100 | $120.00 | Only Available for RPMWare Clients Signup Today |
Only Available for RPMWare Clients Signup Today |
Universal Standard Bypass Valve Left-Side Discharge |
